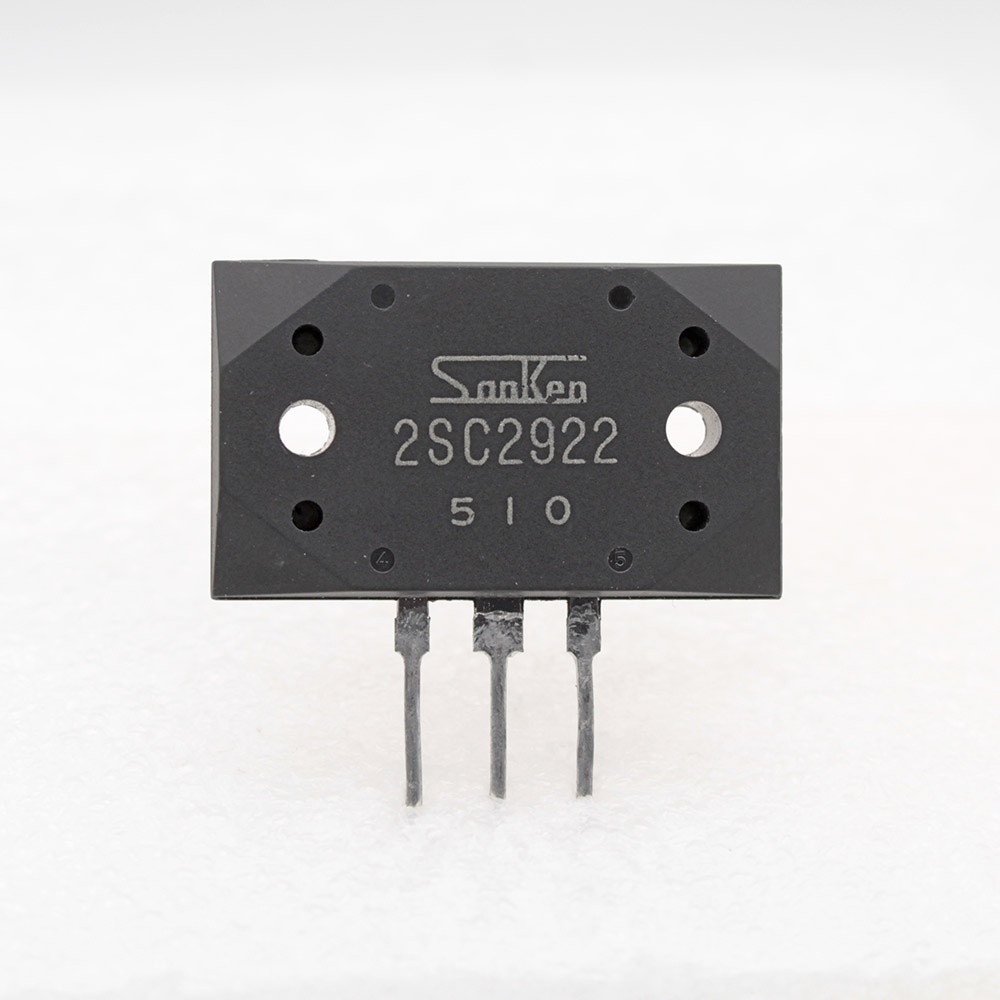

Product Code: 2SC2922 (Complementary: 2SA1216)
Manufacturer: SANKEN Semiconductors (Japan Made)
Product Type: NPN Amplifier Transistor – Audio & General Purpose
Mounting: Through-hole
Product Series: 2SA1216/2SC2922
140 in stock
Quantity
Price
1
15,5000 €
25
13,2500 €
50+
12,7500 €
×
Total:
Delivery Services
Delivery Services
In CPH Electronics, we try to provide the best products and services to our end customers. One of the important factors, among the quality of our products and services, is the speed of processing the orders and the delivery times. In order to provide the best available service, we co-operate with EASY MAIL courier services in Greece who provide next day deliveries and international Logistic companies for economy & express deliveries in EU, US and Canada, as with the Hellenic Post for our deliveries around the globe.
Shipping Times and Charges
Shipping Times and Charges
All orders are processed during working hours (9:00 am – 5:00 pm GMT+2 Mon-Fri). Orders placed out of these hours, will be processed the next working day. Next day delivery for Greece is available if orders are placed before 11:30am and 10:30am for orders to the rest of the world. Free delivery available for orders:
- i) over 99€ (exc. VAT) and up to 2Kg for deliveries in Greece,
- ii) over 149€ (exc. VAT for EU) and up to 5Kg for deliveries in the European Region
- iii) over 199€ and up to 1Kg for deliveries to US/CA/UAE/Mexico/Qatar/South Africa
Rest of the world orders other than described in the shipping options, customers can contact us through our contact page to ask for carriage prices or to arrange a shipment by providing your account number among with the order number provided from us upon your purchase.
Description
Specifications
| Manufacturer | SANKEN |
| Manufacturer Series | 2SC2922 (NPN) (Complementary: 2SA1216) |
| Case / Package | MT-200 |
| Mounting Style |
Through-Hole |
| Collector-Emitter Voltage (VCEO) |
180V |
| Collector-Base Voltage (VCBO) | 180V |
| Emitter-Base Voltage (VEBO) | 5V |
| Peak Collector Current (ICM) |
17A |
| Collector Current (IC) | 10A |
| Peak Base Current (IBM) | 5A |
| Total Power Dissipation (PC) |
200W @ TC: 25°C |
| Max Operating Junction Temperature (Tj) |
+150°C |
| Packaging |
BULK |
| Storage Temperature Range (Tstg) |
-55 ~ +150°C |
| Product Type |
Audio/General Purpose Amplifier Transistor |
 |
N/A |
 |
Datasheet |
Additional information
| Weight | 20 g |
|---|
